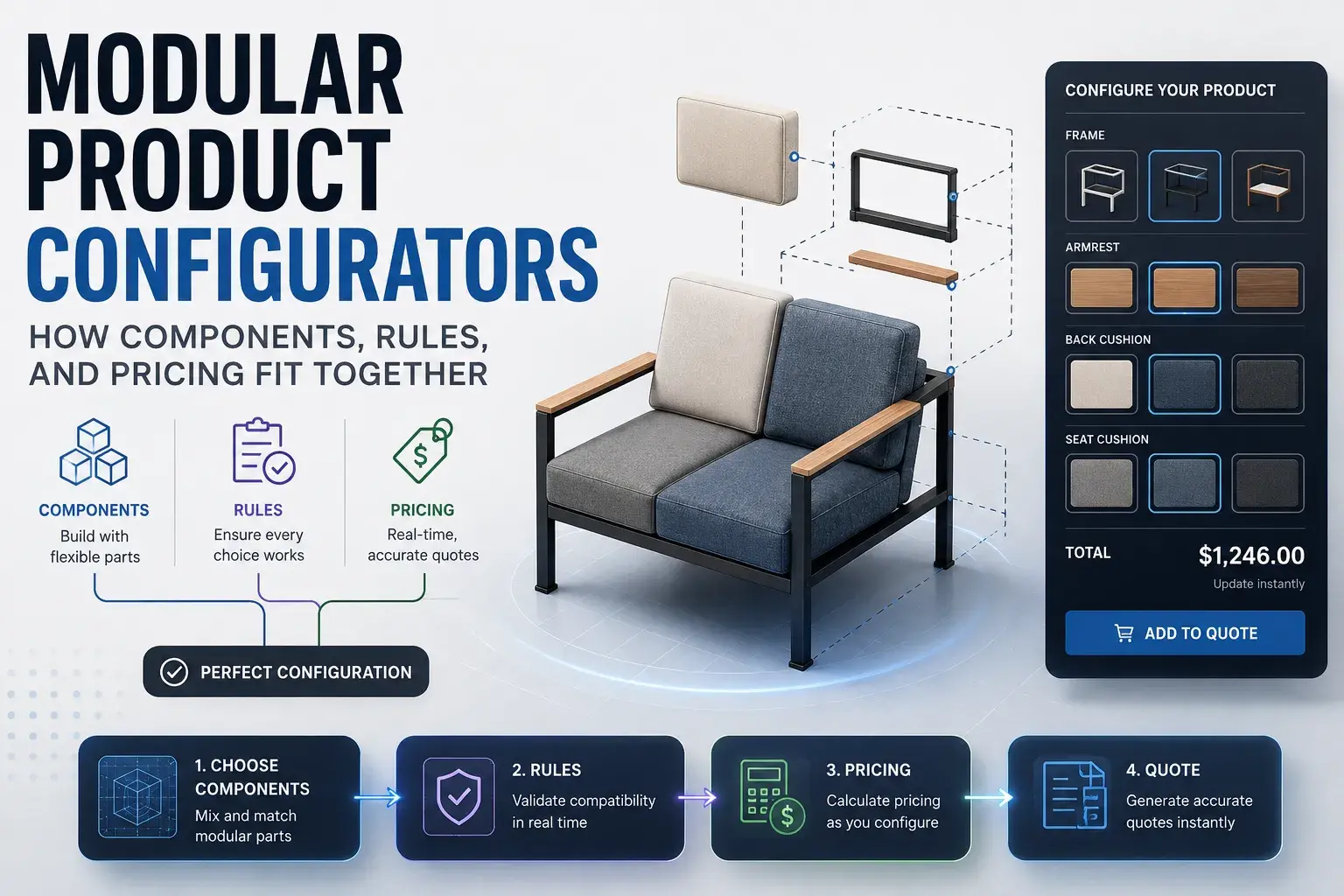

Modular Product Configurators: How Components, Rules, and Pricing Fit Together

A modular product configurator lets a customer assemble a product from interchangeable parts while the software keeps every choice valid and priced in real time. Underneath the interface, three things do the heavy lifting: the components people combine, the rules that block impossible combinations, and the pricing logic that turns each configuration into a number. Get those three right and the tool sells complex products on its own. Get one wrong and you ship quotes that cannot be built.

This guide breaks down each of the three, then shows how they work together in a real configuration.

What a modular product configurator is

A modular product configurator is software that builds a finished product out of predefined modules instead of offering one fixed SKU. Think of a wardrobe assembled from cabinets, doors, and internal fittings, or a window built from frame profiles, glazing, and hardware. The customer picks modules, the configurator validates the combination against engineering rules, updates a live price, and often renders the result in 3D so the buyer sees exactly what they are ordering.

The modular part matters. Rather than listing thousands of finished variants, you define a smaller set of building blocks and let the logic generate valid combinations on demand. That is what makes it possible to sell products with hundreds or thousands of permutations without drowning your catalog or your sales team.

The three building blocks at a glance

Before going deep, here is how the pieces relate.

None of them works alone. A component nobody can legally select is dead weight. A rule with no components to govern does nothing. A price that ignores the rules quotes a product that cannot ship. The craft is in wiring them together.

Components: the modules customers combine

Components are the raw material of the configurator. Each one is a module or an option with its own attributes: dimensions, material, finish, weight, a 3D asset, and often a link to a part number in your ERP. In a furniture configurator, a cabinet body is a component, and so is every door style and hinge that can attach to it. The configurator groups these into choices the buyer moves through, usually one decision at a time.

How you structure components decides how flexible the tool feels. Too coarse and customers cannot get what they want. Too granular and the interface overwhelms them. A common mistake is modeling every finished variant as its own component instead of separating the base module from its options, which defeats the point of going modular in the first place. Vivid3D lets manufacturers define reusable component libraries once and reuse them across product families, which keeps large catalogs maintainable rather than exploding into thousands of one-off entries. Teams that want a step-by-step view can follow the process in this guide on how to build a 3D product configurator.

Modular vs parametric structure

Two structures show up here, and they solve different problems. Modular configuration snaps together discrete parts: you choose from a fixed set of doors, and each is a distinct component. Parametric configuration drives a product from continuous values instead, so a customer types a width of 843 millimeters and the geometry regenerates to fit. Most real products need both. A window might be parametric on frame dimensions but modular on glazing type and hardware. Deciding which attributes are discrete and which are dimension-driven is one of the first modeling calls you make, and it shapes everything downstream.

Rules: the logic that keeps configurations valid

Rules are what separate a configurator from a fancy dropdown menu. They encode the engineering and commercial constraints that decide whether a set of choices can actually be produced. Without them, a customer will happily assemble something that looks fine on screen and cannot be manufactured, and you find out only when the order hits the shop floor.

Most rules fall into a few types. Compatibility rules say two choices can coexist, such as which handles fit which door thickness. Dependency rules make one selection require another, like a soft-close mechanism that forces a specific hinge. Exclusion rules block combinations outright, so a glass panel cannot be paired with a mounting bracket rated only for solid wood. Dimensional constraints cap what parametric inputs allow, keeping a shelf within the span its material can bear without sagging.

The reason this pays off is error prevention. A configurator that guides buyers through a logical flow and only offers valid options removes the misconfigured orders that cause costly returns and rework. In complex product sales like windows and doors, that validation is often the whole reason a company adopts a configurator, as covered in this look at window and door configurators for complex product sales. The catch is maintenance. Rules multiply fast, and a rule set nobody documents becomes impossible to change safely, so keeping the logic centralized and readable matters as much as writing it.

Pricing: turning a configuration into a number

Pricing is where a valid configuration becomes a quote. The buyer expects the total to update the instant they change a selection, with no hidden fees revealed at checkout, and that transparency is a big part of why configurators lift conversion. Behind the live number sits a pricing model that can get surprisingly involved.

The simplest form is a base price plus per-option surcharges: start from the module cost, add for the premium finish, add for the upgraded hardware. Quantity and volume logic layers on top, adjusting unit price by order size or by measured area, which matters for anything sold by the square meter like glazing or paneling. Rule-based pricing goes further, changing the price when certain combinations are selected, for example a surcharge when an oversized panel needs reinforced framing. And for companies selling across regions, pricing has to handle multiple currencies and local adjustments, applying rounding and market rules in real time rather than converting at the end.

Pricing is also where the configurator meets the rest of the business. It usually needs to pull live cost data from an ERP and push the finished quote into a CRM or CPQ workflow, so the number a customer sees matches what the company can actually honor. If you are weighing where visualization ends and quoting begins, this breakdown of a product configurator tool versus a system is a useful frame.

How components, rules, and pricing work together

Put the three together and a configuration flows end to end. Take a customer building a modular closet. They start by choosing a cabinet body, a component with a fixed width and a base price. They pick a sliding glass door, which a compatibility rule confirms fits that body. They add a soft-close mechanism, and a dependency rule automatically swaps in the hinge that mechanism needs. When they try to add a heavy internal drawer, an exclusion rule greys it out because the glass door cannot carry that load.

All the while, pricing tracks every valid choice. The base cabinet sets the floor, each option adds its surcharge, and because they selected the wide body, a rule-based rule adds a reinforcement fee. The customer sees the running total and a 3D preview update with each click. When they finish, the configurator hands off a priced, buildable specification: a bill of materials engineering can produce and a quote sales can stand behind. That handoff, from a customer decision to production-ready data, is the real output of the whole system.

What you need before you build one

Most configurator projects stall not on software but on data. Before anything renders, you need your product knowledge in a structured form: the component catalog with attributes and part numbers, the rules that govern how they combine, the dimensional limits for parametric elements, the pricing logic, and the 3D assets that make it visual. That information usually lives scattered across engineering documents, spreadsheets, and ERP records, and pulling it together is where most of the effort goes.

This is the part manufacturers underestimate. A configurator is only as good as the rules and data behind it, which is why the modeling phase, not the front end, tends to set the timeline. Vivid3D is built for this manufacturer reality, connecting a reusable 3D component library, a rule engine, and pricing logic in one platform so complex, made-to-order products can be configured, visualized, and quoted without maintaining a separate tool for each step. Furniture makers can see how the pieces come together on the 3D furniture configurator page, and the wider visualization layer is covered under 3D product visualization software.

The takeaway for anyone scoping a build in 2026 is to treat components, rules, and pricing as one connected system rather than three separate features. Model the components so they stay reusable, write the rules so they stay maintainable, and wire pricing so it reflects both. Do that and the configurator earns its keep, turning a confusing catalog into a tool that sells and quotes complex products on its own.

Frequently asked questions

What data do I need to build a modular product configurator?

You need structured product data: a component catalog with attributes and part numbers, the configuration rules that define valid combinations, dimensional limits for parametric elements, your pricing logic, and 3D models for visualization. This is usually gathered from engineering documentation, spreadsheets, and ERP or PIM systems, and preparing it is typically the largest part of a project.

What is the difference between modular and parametric configuration?

Modular configuration snaps together discrete, predefined parts, such as choosing from a fixed set of door styles. Parametric configuration drives geometry from continuous values, so entering a custom width regenerates the model to fit. Many products use both, staying parametric on dimensions and modular on options like material or hardware.

How do configuration rules prevent invalid combinations?

Rules encode engineering and commercial constraints as compatibility, dependency, exclusion, and dimensional logic. As a customer makes selections, the configurator checks each choice against these rules and only offers options that remain valid, which stops unbuildable configurations before they ever become an order.

Can a configurator handle regional or multi-currency pricing?

Yes. Pricing logic can support multiple currencies and market-level adjustments, applying local rounding and regional rules in real time rather than converting a single base price at the end. This keeps quotes accurate for customers and consistent across sales channels.

What is the difference between a modular configurator and CPQ?

A modular configurator focuses on building and validating a product from components with visualization, while CPQ (configure, price, quote) centers on generating priced quotes and moving them through a sales process. They overlap on pricing and often integrate, with the configurator feeding a buildable, priced specification into the CPQ or ERP workflow.
